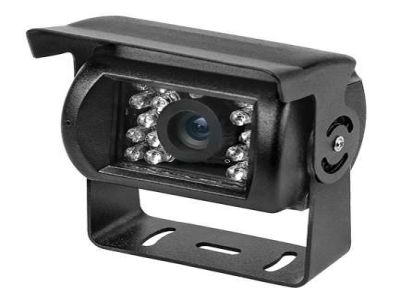

Serial port camera microcontroller development

Serial port camera microcontroller developmentSerial camera (CAMERA), also known as digital camera camera, JPEG camera, etc., is a device with video capture and image compression functions, and is wid

  • Model: Serial port camera microcontroller development

Serial port camera microcontroller development

Serial port camera microcontroller development

Serial camera (CAMERA), also known as digital camera camera, JPEG camera, etc., is a device with video capture and image compression functions, and is widely used in various image capture systems, environmental monitoring, industrial field process control, and medical equipment , Video phone, security and anti-theft, keeping like doorbell, vehicle monitoring, remote monitoring, digital image recording, etc. It should be the widest area for GPS positioning monitoring, so it has become a GPS serial camera.


Electrical parameters:


Image sensor type: CMOS 1/4 inch


Pixel size: 5.6um*5.6um


White balance: automatic


Exposure: Automatic


Gain: automatic


Shutter: Electronic Rotating Shutter (ERS)


Image pixels: 300,000 pixels


Signal to noise ratio: 45DB


Dynamic range: 60DB


Maximum analog gain: 16DB


Frame rate: 640*480 30fps


Scan mode: Progressive scan


Viewing angle: 90 degrees -170 degrees (optional)


Image size: 640*480 320*240 160*120


Serial port rate: 115200 max


Working current: 75MA


Working current (infrared lamp working): 200MA


Infrared night vision: 850NM infrared light/940NM infrared light


Working voltage: DC +5 volts (+/-5%)


Working environment temperature: -20 ~ +60℃


Working humidity: 20%-80%PH


Image interface: Industrial RS232/RS485/TTL




Shenzhen Fandou Technology Co., Ltd. Professional MCU development, electronic product development program, digital gift customization company
