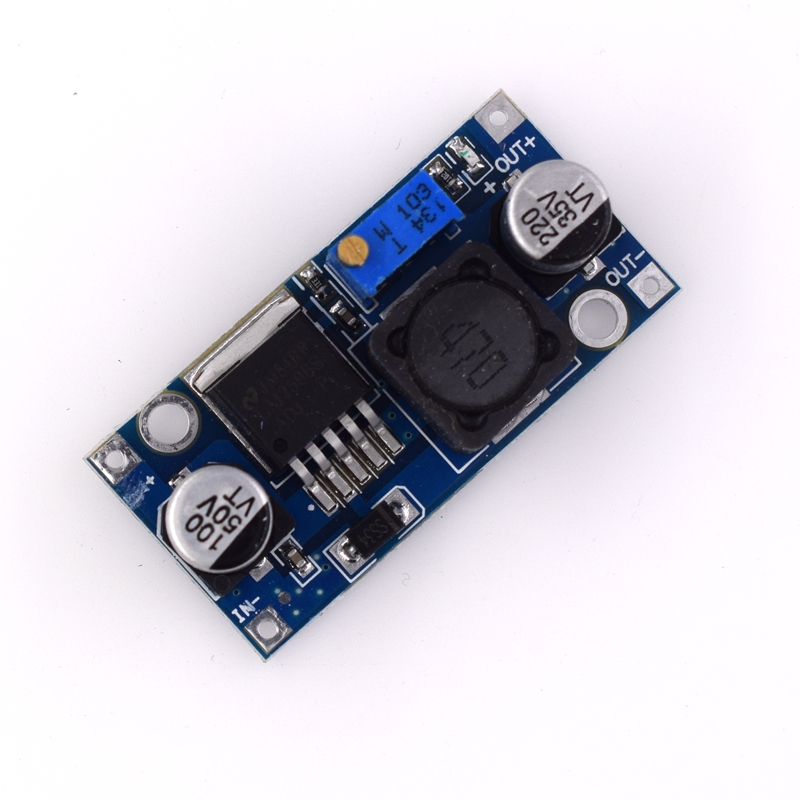

High quality LM2596 LM2596s power supply module DC-DC BUCK 3A adjustable buck module LM2596S Step down

LM2596S DC-DC buck moduleModel/NameLM2596S DC-DC buck module input voltage 3.2V~40V output voltage 1.25V~35V Output current 3A (maximum) conversion efficiency 92% (highest) Output ripple <30mV swit

Model： High quality LM2596 LM2596s power supply module DC-DC BUCK 3A adjustable buck module LM2596S Step down

Online Inquiry

LM2596S DC-DC buck module

Model/Name

LM2596S DC-DC buck module

input voltage

3.2V~40V

output voltage

1.25V~35V

Output current

3A (maximum)

conversion efficiency

92% (highest)

Output ripple

<30mV

switching frequency

65KHz

working temperature

-45℃~ +85℃

Size

43mm * 21mm * 14mm

(length * width * height)
